Hydro Place

SDG(s)

Sustainable Development Goal(s)

9Industry, innovation and infrastructure

11Sustainable cities and communities

13Climate action

Disclaimer:

Please be aware that the content herein is comprised of personal reflections, observations, and insights from our contributors. It is not necessarily exhaustive or authoritative, but rather reflects individual perspectives. While we aim for accuracy, we cannot guarantee the completeness or up-to-date nature of the content.

Images

Type of the Solution

Innovative

Description of the solution

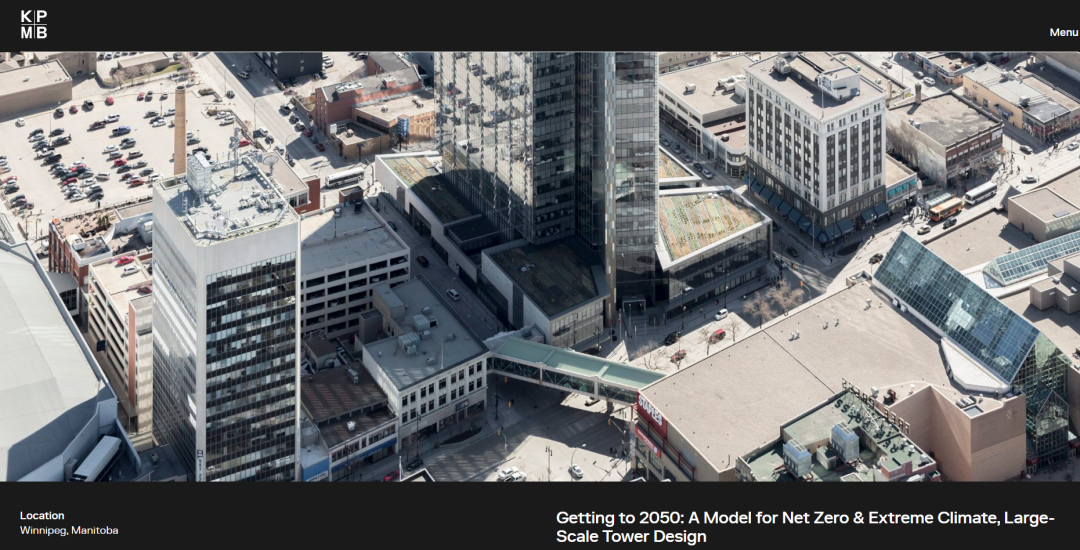

The Hydro Place was designed by KPMB architects and features 78-foot indoor waterfalls that humidify and dehumidify incoming air. They cool the building in warmer seasons and reduce energy consumption by 77%. The waterfalls are designed with strands of mylar held at the bottom by bronze weights, and small valves at the top of each strand control the water flow. 100% fresh air into the offices is first drawn into the 6-storey south atrium. There it is preconditioned by a water feature (tensioned stainless steel cables with conditioned water running down each strand) before being drawn into the office‚Äôs raised floors. This feature humidifies the ambient fresh air in winter and dehumidifies air in summer.

Who lead the solution

Private organization

Other Notes

KPMB

Links to the solution
