Al Bahar Towers Responsive Facade

SDG(s)

Sustainable Development Goal(s)

9Industry, innovation and infrastructure

11Sustainable cities and communities

Disclaimer:

Please be aware that the content herein is comprised of personal reflections, observations, and insights from our contributors. It is not necessarily exhaustive or authoritative, but rather reflects individual perspectives. While we aim for accuracy, we cannot guarantee the completeness or up-to-date nature of the content.

Images

Type of the Solution

Technological

Description of the solution

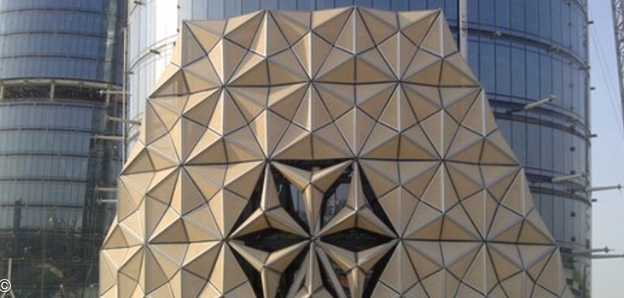

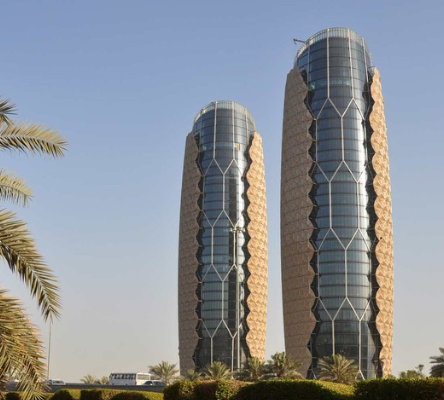

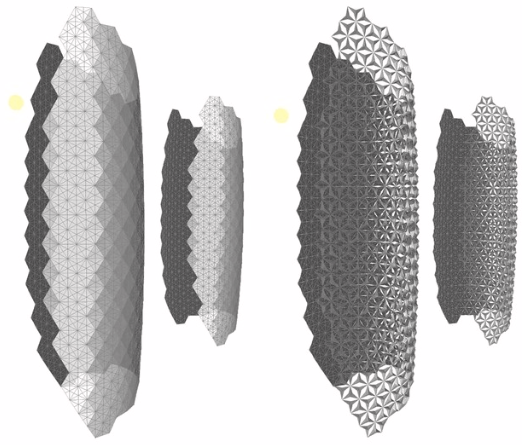

Aedas Architects designed a responsive facade which takes cultural cues from the ‚Äúmashrabiya‚Äù a traditional Islamic lattice shading device. Completed in June 2012, the 145 meter towers was developed by computational design using parametric description for the geometry of the actuated facade panels. The screen operates as a curtain wall sitting two meters outside the buildings exterior on an independent frame. Each triangle is coated with fiberglass and programmed to respond to the movement of the sun as a way to reduce solar gain and glare. In the evening all the screens will close and it reduces solar gain by 50%.

Who lead the solution

Private

Other Notes

Aedas
