Type of the Solution
Innovative
Description of the solution

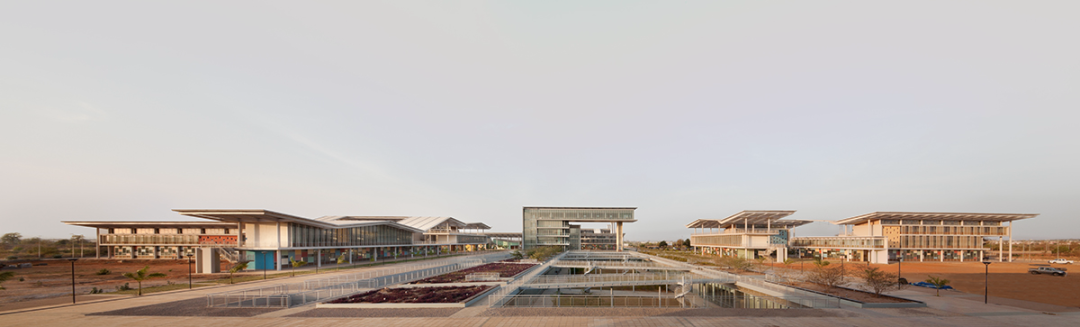

Innovative strategies at the Universidade Agostinho Neto
were employed to promote natural ventilation and
passive cooling in all buildings with the exception of the
library which is located underground. Landscape was
advantageous and trees were arranged in a linear order
to create a tunnel through which prevailing winds would
blow from the southwest. Even the positioning of these windows can have passive cooling effects through cross-ventilation, or the aligning of windows to facilitate air circulation. Notable examples of cross-ventilation include Louisiana shotgun houses, which minimize interior walls that may obstruct horizontal drafts.
Who lead the solution
Local Government
Other Notes
Universidade Agostinho Note

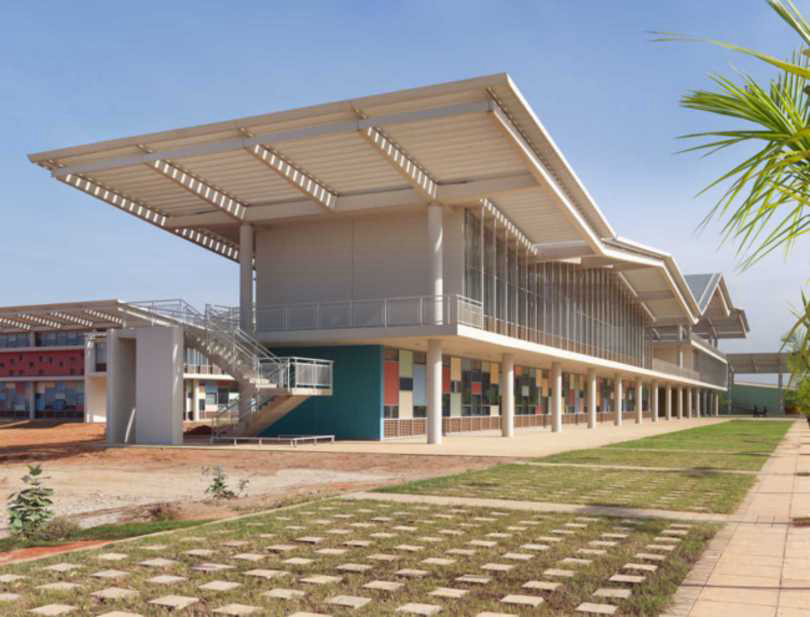

The classrooms of UAN are arranged in a grid such that they are angled 19 degrees off the north/south axis thus assuming the ideal orientation to maximize in natural lighting as well as natural ventilation. The roofs of the classrooms are designed with natural ventilation in mind, calibrated through computer dynamics to minimize solar gain as well as maximizing pressure differences to draw breezes through the classrooms. Invented by Perkins+Will Architects.
Links to the solution
Consent to share form or official link.
9Industry, innovation and infrastructure
